How to Install Bay Boat Flooring Around Livewell and Storage Lids

A bay boat deck is not one flat rectangle. The bow casting area, center-console passage, livewell and storage lids, drains, pulls, hinges, seat bases, and stern work zone all move or serve different purposes. If sheet flooring is planned as one continuous shape, a neat-looking layout can interfere with a lid, hide a fastener, cross a gutter, or make future access harder.

The practical solution is to treat every moving lid as an independent panel and every fixed obstruction as a separate boundary. This guide explains how to document the deck, establish reference lines, make full-size templates, rehearse lid movement, dry-fit the complete route, and pause for the exact product and boat instructions before final placement. It is a planning workflow, not a substitute for the current directions for your boat, flooring, hardware, or livewell system.

Start with the bay boat in its normal working configuration

Empty the deck only after photographing how the boat is actually used. Record the bow platform with typical fishing gear, the walkway on both sides of the console, the livewell area, stern storage, drains, removable seats, cooler positions, and the route used when someone boards with wet footwear. Photograph every lid open and closed.

These images reveal conflicts that an empty-deck measurement can miss. A lid may clear when nothing is nearby but meet a seat post, cooler, leaning post, or adjacent lid in normal use. A tackle bag may cover a pull. A frequently used route may cross the narrow strip between two openings. Documenting the loaded boat gives the template a functional context.

Build a deck map before making a template

Sketch the deck as connected zones rather than one large floor. Use simple labels such as bow fixed deck, anchor or storage lid, forward passage, port console lane, starboard console lane, cockpit fixed deck, livewell lid, stern storage lid, and boarding step. Mark drains, gutters, hinges, pulls, fasteners, inspection plates, seat bases, and any opening that must remain visible.

Separate each feature into one of three classes:

• Moving panels: lids and removable covers that need their own template and function check.
• Fixed boundaries: the console base, molded walls, seat structures, and other stationary shapes that the flooring must stop around.
• Service and water routes: drains, gutters, access plates, hardware, and openings that should not be hidden merely to make a pattern look continuous.

This classification prevents a common planning error: using visual alignment as the only goal. Pattern direction matters, but access and movement set the panel boundaries first.

Choose reference lines that survive from bow to cockpit

Select a stable centerline or other repeatable boat reference rather than following a cushion edge, loose accessory, or irregular old panel. Add cross-references at the console, the forward edge of the cockpit, and the stern work area. Photograph and label those marks so the same orientation can be restored after templates are removed.

Decide the intended pattern direction before tracing small pieces. On a bay boat, the bow platform and narrow console lanes can make the same pattern appear to turn even when every piece was cut from one sheet direction. Use arrows on every paper template and note which edge faces the bow. Focean’s pattern-alignment guide explains how to register direction across independent panels without joining moving lids to fixed deck sections.

Template each livewell or storage lid independently

Make a full-size template for the lid itself and a separate template for the fixed deck surrounding it. Do not bridge the paper across the opening and assume the cut line can be added later. Trace the lid perimeter, hinge side, pull, latch, gutter, nearby fasteners, and any irregular corner as separate observations.

Open and close the lid with the paper in place. Check the hinge arc, the edge nearest the console or seat base, the pull location, and the path of any neighboring lid. If the paper wrinkles, catches, lifts, or covers hardware, revise it before transferring the shape. For a livewell, keep the normal opening, inspection, cleaning, and service route visible; follow the boat and livewell documentation for the exact system.

Treat the console base as a fixed island

The center console creates two narrow routes and several tight curves. Template the port and starboard lanes in relation to the same centerline, but do not force them into one fragile piece. Mark the console perimeter, accessible fasteners, wiring or service openings, floor drains, and any removable trim that the boat documentation says must remain accessible.

Use relief cuts only in the paper template while fitting around compound curves. Transfer a clean final outline only after the paper lies flat without pulling away from the console base. If a narrow strip would be difficult to position, inspect, or replace, reconsider the panel boundary rather than preserving it solely for visual continuity.

Plan gutters, drains, and pulls as no-cover zones

A photograph can make a small gutter or drain look like unused space. On the real deck, that feature has a job. Mark a clear no-cover zone around every opening according to the boat and product instructions. Keep pull recesses operable and avoid hiding screws or fasteners that may be needed for inspection.

Do not infer a universal clearance from another boat or from an image online. Lid geometry, panel thickness, trim, hardware, and drainage arrangements differ. The right boundary is the one that passes the movement and access checks on the actual boat while following the exact current instructions.

Transfer shapes in a controlled order

Number every template and record its orientation before moving it to the flooring material. Confirm the exact item, face direction, backing or placement method, cutting guidance, and required preparation from primary instructions. If those details cannot be verified, stop before cutting or placement.

Transfer the largest fixed zones first, then the independent lids, then the console-side lanes and small transition pieces. This order lets you check the main reference system before committing to narrow parts. Keep labels on the removable paper, not on a finished visible surface, and keep tools away from upholstery, wiring, hoses, and livewell components.

Dry-fit the entire working route before final placement

A single panel can fit while the complete deck still fails. Place every cut piece in position without committing it, using only a method permitted by the exact instructions. Inspect the boat from the bow, from behind the console, and from the stern. Confirm that the pattern direction is intentional and that fixed-panel seams do not create awkward slivers beside lids.

Then test the boat as a system:

1. Open and close every livewell and storage lid through its normal range.
2. Operate pulls, latches, and removable access covers.
3. Check both console-side walking routes and the stern boarding path.
4. Confirm drains, gutters, fasteners, and inspection points remain visible.
5. Place ordinary removable gear in its documented location and repeat the checks.
6. Photograph the accepted dry fit and template labels before lifting the pieces.

For another example of independent moving panels, review Focean’s sport-fishing fish-box installation guide. The boxes are larger, but the core lesson is similar: moving lids should remain independent from the fixed working deck.

Prepare and place only from exact current instructions

Surface preparation, environmental limits, placement sequence, pressure, waiting time, and future removal considerations depend on the exact flooring, substrate, and boat. Do not substitute a generic online sequence for primary documentation. If the deck has damage, contamination, moisture, coating uncertainty, loose hardware, or an unresolved substrate issue, address that condition before proceeding.

Work one documented zone at a time and preserve the accepted reference marks. Do not cover drains, gutters, service plates, fasteners, hinges, pulls, or hardware to correct a visual mismatch. If the final piece no longer matches the dry fit, stop and identify what moved instead of forcing it into place.

Run a final lid-and-route inspection

After the exact placement process is complete, repeat the full function check. Open every lid, inspect the perimeter, operate every pull and latch, walk both console lanes, and examine the bow-to-stern route. Verify that no edge crosses a moving joint and no small piece interferes with access.

Keep the photographs, templates, panel numbers, and exact product information together. That record makes later inspection or a single-zone repair easier without guessing how the original layout was indexed. Focean’s center-console installation plan adds a broader project sequence for connected deck zones.

FAQ

Should flooring cross from the fixed deck onto a livewell lid?

Plan the lid and surrounding fixed deck as independent pieces. A continuous visual pattern can still be registered across them, but the moving boundary, gutter, hinge, pull, and service access should remain functional. Confirm the exact clearances and placement method on the actual boat and in the current instructions.

Can one paper template cover several adjacent storage lids?

Use a separate template for each moving lid and another for the fixed strips between them. A large reference sheet can help preserve alignment, but each opening should be transferred and tested independently so one correction does not distort the neighboring panel.

What if the console-side strip is very narrow?

Reconsider the boundary before cutting. A narrow strip may be difficult to align, inspect, or replace, and it should not hide a fastener, drain, or service opening. A larger stable panel or a different seam location may be more practical if the exact instructions and boat geometry allow it.

Practical takeaway

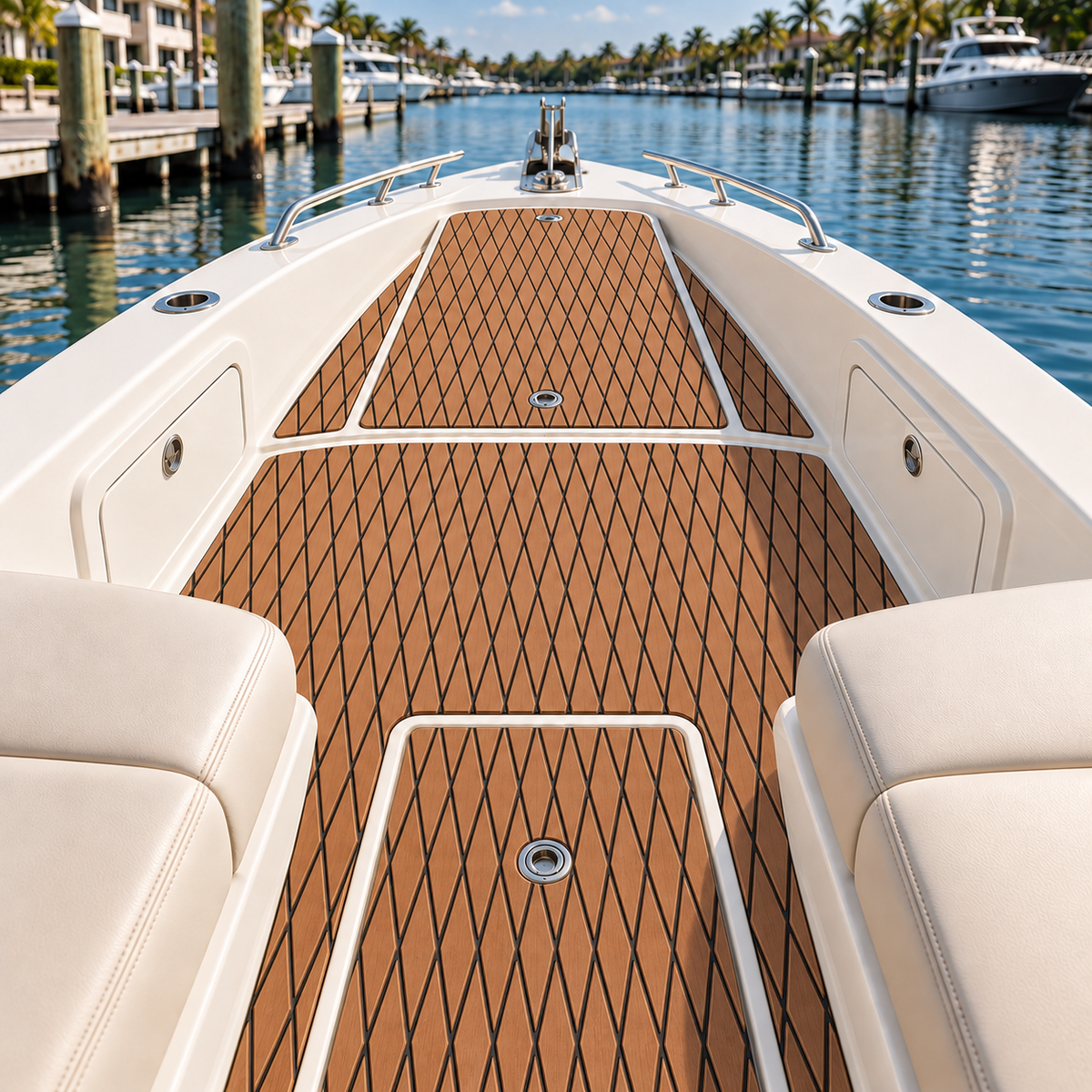

Install a bay boat floor as a set of coordinated working zones: fixed bow and cockpit panels, independent livewell and storage lids, separate console-side routes, and visible service and water paths. Document the loaded boat, index every template, dry-fit the complete route, rehearse every moving part, and use the exact current instructions before final placement.

For exact-item questions, contact Focean with clear deck photographs, open-and-closed lid views, verified flooring details, and the boat’s console, drainage, and access layout.
