How to Align Boat Flooring Patterns Across Separate Panels

A boat deck rarely behaves like one blank rectangle. Even a compact runabout can have bow footwells, storage lids, a center walkway, cockpit panels, seat bases, curved edges, and service covers. When sheet flooring is cut for those separate surfaces, every piece may fit its outline while the finished deck still looks disconnected.

The missing step is pattern registration: choosing visual reference lines and carrying them across gaps, hatches, and changes in geometry. This guide explains how to plan that alignment before cutting. The goal is not to disguise every construction break. It is to make intentional lines easy to read while keeping every moving or serviceable part independent.

Why individual fit is not enough

A full-size template tells you whether a panel fits a particular zone. It does not automatically tell you whether grooves, diamonds, or borders will meet the neighboring panel in a coherent way. If each template is rotated for the easiest material yield, adjacent patterns can drift. A hatch may appear twisted even when it opens correctly, and a center walkway may change direction at the exact point where the eye expects continuity.

Begin with two separate standards. The functional standard is that hatches, drains, fasteners, hinges, removable sections, and service areas remain accessible. The visual standard is that the dominant pattern follows a deliberate reference through the connected deck. Never sacrifice the functional standard to force a decorative match.

Choose one master reference line

Stand where people first see the deck: often at the stern entry, cockpit, or bow walkway. Identify the longest useful sight line rather than assuming the hull centerline is always best. On an open-bow runabout, the clearest reference might be the center of the windshield passage, the line between helm and passenger footwells, or the fore-and-aft route into the bow.

Mark that master line on a plan-view photograph or a simple top-down sketch. Then mark secondary references, such as the center of a storage lid or the forward edge of a seat base. Secondary lines help position local pieces, but they should not compete with the master line.

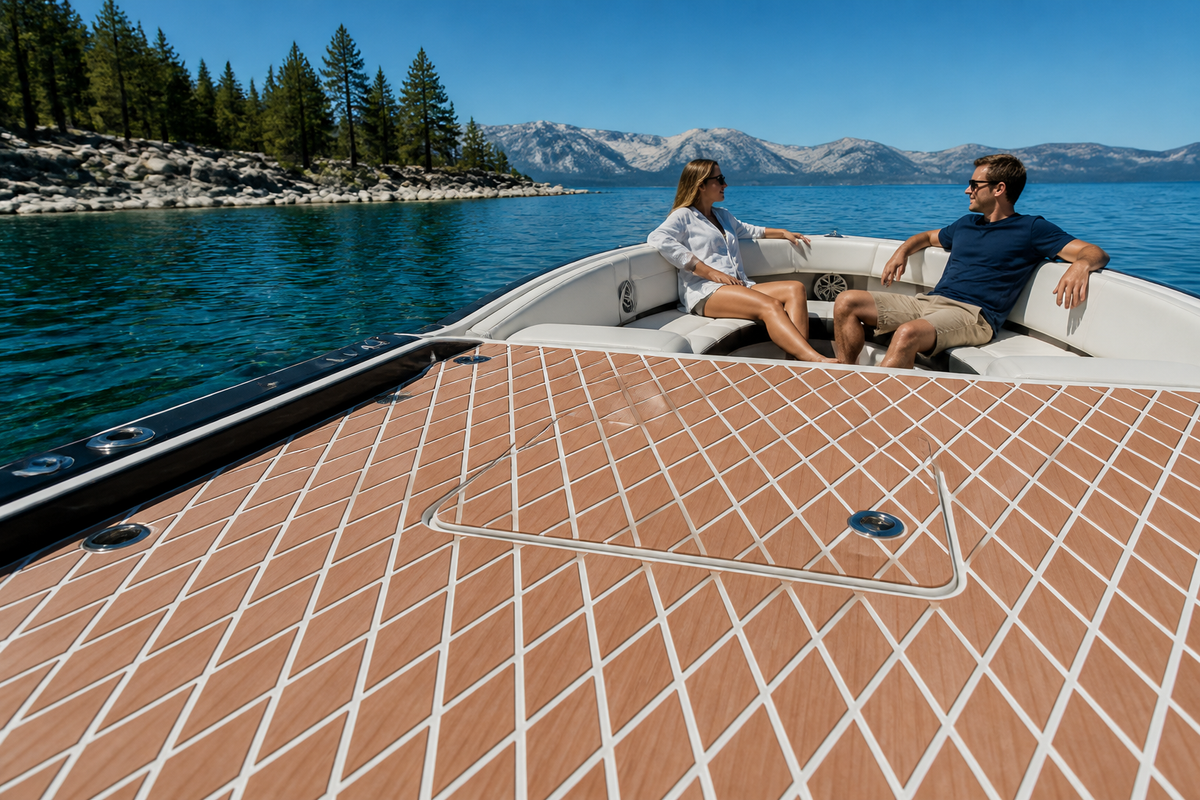

The featured image shows a warm-tan diamond pattern spanning separate bow surfaces and a storage lid. It is an AI-generated planning illustration, not a customer installation or proof of fit. The useful visual lesson is the relationship between the dominant deck field, the hatch outline, and the seating boundary.

Decide what should align—and what should not

Not every neighboring edge needs continuous pattern registration. Classify each boundary before drawing panel shapes.

• Visual continuation: two fixed panels separated by a narrow joint where the eye expects the pattern to continue.
• Moving boundary: a hatch, storage lid, engine cover, or access panel that must remain independent.
• Structural transition: a step, molded break, seat base, threshold, or change in deck level.
• Wet or service boundary: a drain, gutter, hardware cluster, inspection point, or removable component.
• Designed transition: a deliberate border or direction change used to separate two functional zones.

Use continuous registration across the first category when it remains practical. At moving and structural boundaries, favor a clear, repeatable relationship rather than pretending the break does not exist. A centered hatch field or an even border can look more intentional than a nearly aligned pattern that misses by a small amount.

Build an orientation map before cutting

Create a plan view that shows every proposed piece. Give each panel a unique number and draw an arrow for its top side and pattern direction. Add the master reference line to every template it crosses. If the pattern has a repeat, mark one recognizable feature—such as a diamond center or a groove line—as a registration point.

For curved bow panels, draw at least two cross-reference marks rather than relying on one arrow. One mark can preserve direction while the second prevents the panel from sliding sideways relative to its neighbor. For long cockpit strips, add registration marks at both ends so a small rotation does not compound over distance.

Keep photographs of the empty deck with the same panel numbers. A numbered map is useful later if a piece is revised, damaged, or removed for service. Focean's runabout installation guide provides a broader sequence for templating, dry fitting, and placement.

Register patterns across hatches without bridging them

Treat a hatch lid as its own panel. Do not use one sheet to cover both the fixed deck and a moving lid. Instead, close the hatch, place the paper templates together, and transfer the same reference marks across the gap. Then open the hatch and verify that the separate templates preserve the hinge, latch, pull, gutter, and required edge clearance.

For a repeated diamond or linear groove, choose whether the lid should continue the surrounding field or receive a centered local composition. Continuation can make a broad deck look calm. A centered local field can be better when the lid is large, rotated, or framed by a strong molded border. Record the choice so it is not changed accidentally during the cutting plan.

Open and close every moving part during the complete paper dry fit. Pattern alignment is never a reason to reduce access or create interference. If the visual plan conflicts with movement, revise the decorative relationship.

Handle curves, narrow strips, and disconnected zones

Curved bow footwells can make straight patterns appear to bend even when the material is not distorted. Keep the pattern direction tied to the master reference, then let the panel outline absorb the curve. Do not rotate each small piece to follow its nearest edge; that can produce a fan effect when the pieces are viewed together.

Narrow strips deserve special attention because a slight orientation error is easy to see. If a strip separates two larger zones, decide whether it belongs visually to the port panel, starboard panel, or central walkway. Label that relationship on the template.

Disconnected zones, such as a bow floor and a stern swim area, do not have to share exact registration. They can share a dominant direction, color relationship, and border logic while using separate local starting points. Focean's swim-platform planning guide explains how to treat the stern transition as its own functional and visual zone.

Make a full-size paper mosaic

Dry-fit every paper template at the same time. Add temporary pattern lines to the paper so you can see the complete field rather than a collection of blank shapes. Close the hatches, stand at the boarding point, and photograph the layout. Then view it from the helm, bow seating, and cockpit.

Ask four questions:

1. Does the master line remain visually stable from the main viewing positions?
2. Are moving panels clearly independent and fully operable?
3. Do borders and direction changes happen at logical construction lines?
4. Would one replacement panel be reproducible from the saved map?

Load the boat with the seats, table, cooler, or ordinary gear that affects the view and access. A pattern that looks balanced on an empty deck may place its strongest line under one seat base and off-center in the remaining visible area.

Transfer the map to sheet material

Before arranging templates on material, confirm the exact item's face direction, backing, installation guidance, and compatibility with the prepared surface. Place all templates with their orientation arrows visible. Preserve the planned pattern relationship first; optimize leftover material only within that constraint.

Use removable registration marks where the current instructions allow them, and keep them outside the finished visible surface when possible. Cut and dry-fit the complete set before permanent placement. Do not stretch a panel to chase a line, because distortion can change both the outline and the pattern relationship.

For changing sun, rain, drainage, drying, and covered-storage questions, use Focean's runabout weather-planning guide alongside the visual map. Pattern continuity should never hide a water path or inspection boundary.

A practical pattern-registration checklist

• Photograph the empty deck from the main viewing positions.
• Choose one master reference line and record why it was chosen.
• Classify every boundary as fixed, moving, structural, wet/service, or designed transition.
• Number every template and add top-side, bow-direction, and pattern-direction arrows.
• Transfer registration marks across neighboring templates while they are fitted together.
• Open all hatches, remove service covers, and test ordinary gear during the full paper dry fit.
• Photograph the approved paper mosaic and save it with the panel map.
• Confirm exact-item instructions before cutting or placement.

FAQ

Must every diamond or groove line match across a hatch?

No. Exact continuation can work on a broad, regularly shaped deck, but a centered hatch field or deliberate border may be clearer around a large or angled lid. The important point is to choose and record the relationship rather than letting it happen accidentally.

Should the pattern follow the hull centerline?

Sometimes, but not automatically. Use the line that best organizes the visible and traveled deck while preserving the boat's functional boundaries. On some layouts, the windshield passage or main walkway is a more useful reference.

Can separate bow and stern zones use different directions?

Yes, when a clear construction transition separates them. Keep each local direction intentional and use color, borders, or repeated details to connect the overall design. Avoid frequent direction changes within one continuous viewing field.

Practical takeaway

Pattern alignment is a planning layer added after access, drainage, movement, and surface condition are understood. Choose one master reference, classify the boundaries, mark every full-size template, and review the complete paper mosaic from real viewing positions. A strong layout makes separate panels read as one design without turning them into one inseparable piece.
