How to Install Sailboat Cockpit Flooring Around Companionway Steps

A sailboat companionway concentrates several jobs in one compact area. Crew step up from the cabin, move toward the helm, handle lines beside the cockpit, open lockers, and pass through the same threshold with wet shoes or bare feet. A sheet-flooring project can become awkward here if the layout is planned as one decorative cockpit panel instead of a sequence of working surfaces.

This guide explains how to plan EVA foam boat flooring around companionway steps and the adjacent sailboat cockpit. It focuses on documenting the existing structure, separating horizontal and vertical faces, building oriented templates, preserving drainage and hardware access, testing every moving part, and choosing an installation order that can be checked before anything is placed. Always follow the boat maker’s directions and the current instructions for the exact flooring, substrate, and installation system you select.

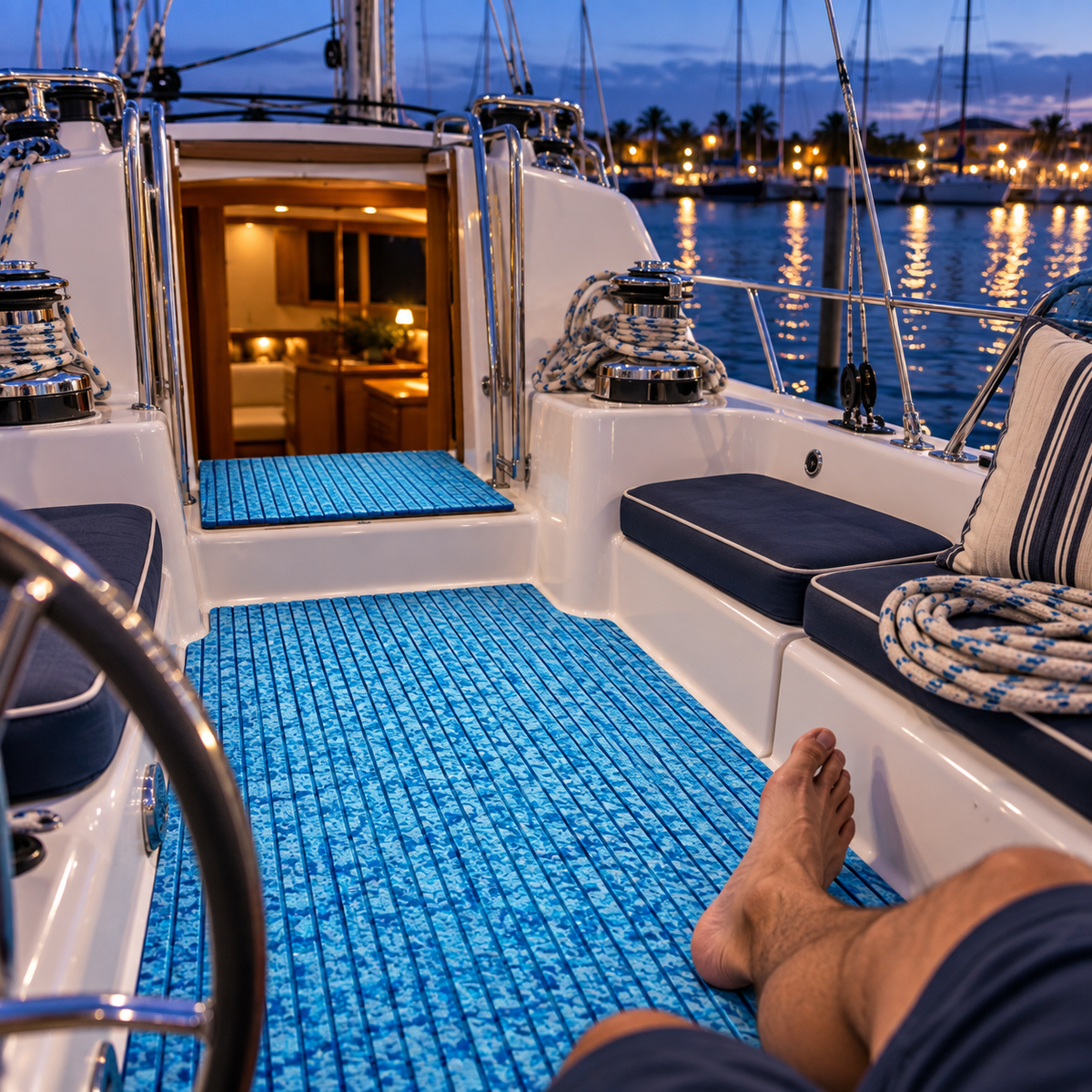

Start with the complete companionway movement

Before measuring, observe how people actually travel between the cabin and cockpit while the boat is safely secured. Note where a hand reaches for support, where the leading foot lands, where the second foot turns, and how the body clears the hatch boards, slider, dodger, wheel, tiller, or nearby seating. Repeat the route from both directions.

Then add the work happening beside that path. A crew member may coil a line, reach a winch, open a locker, carry a bag, or brace while another person uses the steps. These actions reveal the real installation boundary. Flooring should not hide a step edge, narrow a required gap, interfere with a control, or make a service point difficult to identify.

Focean’s sailboat companionway buyer’s guide offers a broader pre-purchase map of cockpit routes, lockers, drains, and sailing hardware. Use that map as the starting record, then develop the installation details below.

Document every surface before designing panels

Photograph the cockpit sole, companionway landing, each tread, any riser, the cabin threshold, locker lids, seat bases, and nearby removable panels. Record the surface material and finish in each zone. Molded texture, paint, older adhesive, repairs, sealant, fasteners, cracks, flex, or persistent moisture can change the preparation question.

Do not assume adjacent surfaces share the same construction or can use the same method. A horizontal cockpit sole, a narrow step, and a vertical riser may need different decisions. If you find a loose coating, leak, soft area, damaged edge, or unexplained moisture, stop the flooring plan until the condition has been evaluated. Covering it would make later inspection harder.

Divide the area into functional installation zones

Create a numbered zone map rather than one large outline. A useful companionway plan may include the main cockpit sole, port and starboard walkways, the lower landing, individual step treads, optional riser faces, the cabin-side threshold, locker lids, and a separate border around fixed hardware. Give every moving lid or removable component its own zone.

Keep the border of each zone understandable from normal standing height. The seam between the cockpit and a step should clarify the change in level. The outline of a locker should remain visible. A directional pattern may continue visually across neighboring pieces, but it should not disguise hinges, latches, drains, or removal points.

Make a separate template for every tread and threshold

Use full-size template material that holds its shape without marking the boat. Trace each horizontal surface separately. Label bow, stern, port, starboard, top face, neighboring panel numbers, and the chosen pattern direction. Add reference marks that let another person return the template to the same position.

For a curved or tapered step, record width at several points instead of relying on one center measurement. Mark rounded corners, molded lips, hinges, fasteners, handhold bases, drainage details, and any edge that must remain exposed. Do not copy the opposite side without checking it directly; apparent symmetry can hide small but important differences.

Templates should represent the finished boundary, not simply the largest area that can be covered. If the exact product instructions call for a particular clearance or termination detail, transfer that requirement to the template and record its source.

Check hatch boards, sliders, lockers, and controls

Place every template in position with the flooring backing intact or with an equivalent dry-fit mockup. Install and remove the hatch boards through their full path. Open and close the companionway slider, cabin door, lockers, seat lids, and service panels. Move the wheel, tiller, pedals, and other nearby controls only as the boat maker permits.

Watch the narrowest points rather than only the broad surfaces. A panel that looks well spaced in the center can conflict with a board groove, latch, hinge arc, removable trim piece, or a foot’s turning path. Verify that required labels, fasteners, inspection ports, and emergency access remain visible and reachable.

Preserve drainage and the cabin boundary

Trace where rain, spray, wash water, and wet-foot traffic move through the cockpit. Mark drains, scuppers, channels, low points, and the boundary that helps keep water out of the cabin. Flooring should not bridge a channel, cover a drain, or be used to redirect water around an unresolved problem.

The companionway threshold deserves its own inspection. Identify the surfaces that overlap or seal when the boat is closed. Keep flooring outside any moving, sealing, ventilation, or drainage detail unless the boat maker and exact product instructions explicitly address that location. If water already reaches the cabin, diagnose that condition before continuing.

For a maintenance view of these same areas, Focean’s post-sail cockpit cleaning guide explains how lines, lockers, companionway edges, drains, and drying affect routine inspection.

Choose pattern direction from the whole cockpit

Lay all labeled templates on a floor or drawing and add one pattern arrow to every piece. Compare a fore-and-aft direction with the boat’s centerline, companionway opening, seat fronts, and locker geometry. A clear visual relationship is usually more useful than forcing every small tread to imitate the largest panel.

Review the plan from the helm, cabin doorway, dock, and an overhead angle. Confirm that step changes, hatch outlines, loose line, and hardware remain easy to distinguish. Color and texture should be evaluated with a physical reference when available because screens and generated scenes cannot establish how an exact item will appear or perform on the boat.

Build a cutting and installation sequence

Decide the order before transferring templates. Begin with the most reliable fixed references in the boat documentation and exact installation instructions. Many projects benefit from resolving the main centerline or cockpit reference first, then checking adjacent walkways, landings, steps, and individual lids against it. The correct sequence depends on the selected system and cockpit geometry.

Create a checklist for each panel: template number, final orientation, neighboring edges, hardware cutouts, unresolved questions, preparation source, dry-fit approval, and placement status. Keep templates and photographs until the complete project has been inspected. Never cut or place a piece simply because the next template appears similar.

Focean’s catamaran installation-planning guide provides a related method for coordinating multiple thresholds, lockers, drains, and service panels across connected deck zones.

Dry-fit the entire route in one session

A full dry fit should include every cockpit and companionway template at the same time. Secure temporary material so it cannot shift unexpectedly, then repeat the cabin-to-cockpit route. Carry an empty version of the gear normally moved through the opening. Operate each hatch board, slider, locker, lid, and control again.

Photograph the complete set from above and from normal eye level. Look for compressed gaps, awkward corners, pattern changes, hidden panel outlines, and edges beneath repeated foot turns. Ask a second person to match every template number to the zone map. Resolve discrepancies on the templates, not during final placement.

Prepare only from exact, current instructions

Surface cleaning, old-material removal, repair, cutting, environmental conditions, pressure, timing, and edge treatment must come from the instructions for the actual boat surfaces and selected flooring system. General advice cannot confirm compatibility. Record the source and date beside every preparation decision.

If the substrate is uncertain, a coating is failing, the cockpit has active leaks, or the work requires unfamiliar removal or bonding, consult the boat maker, flooring supplier, or a qualified marine professional. A careful stop is safer than making an irreversible assumption beneath a finished panel.

Inspect the result as an access system

After the specified installation and waiting steps are complete, inspect more than appearance. Confirm that step boundaries remain obvious, the companionway opens and closes normally, boards can be installed and removed, every locker and service panel completes its full movement, and drains and channels remain open.

Keep the zone map, photographs, template numbers, product information, and instructions together. They create a useful record for future cleaning, inspection, partial repair, or removal. Focean’s sailboat cockpit material comparison adds context for evaluating care, water management, access, and future replacement before committing to a system.

Questions to resolve before installation

• What is the exact substrate and coating in every cockpit, tread, riser, and threshold zone?
• Which moving, sealing, ventilation, and drainage details must remain uncovered?
• Can hatch boards, sliders, lockers, controls, and service panels complete their full movement?
• How will the pattern direction relate across the cockpit, landing, and separate steps?
• Which current preparation, cutting, placement, care, and removal instructions apply to the exact item?
• Can another person match every physical template to the numbered zone map?

Practical takeaway

Installing sailboat cockpit flooring around companionway steps begins with movement, not material. Map the cabin-to-cockpit route, document each substrate, divide the area into functional zones, template every tread and moving lid separately, preserve drainage and closing details, and dry-fit the complete set before cutting or placement. A numbered record makes the project easier to inspect and reduces the chance that a visual decision will compromise access.

Review Focean’s current boat-flooring collection for exact-item information. For a project-specific question, contact Focean with your boat make, model, year, cockpit photographs, substrate notes, labeled templates, and the current information for the flooring you are considering.
