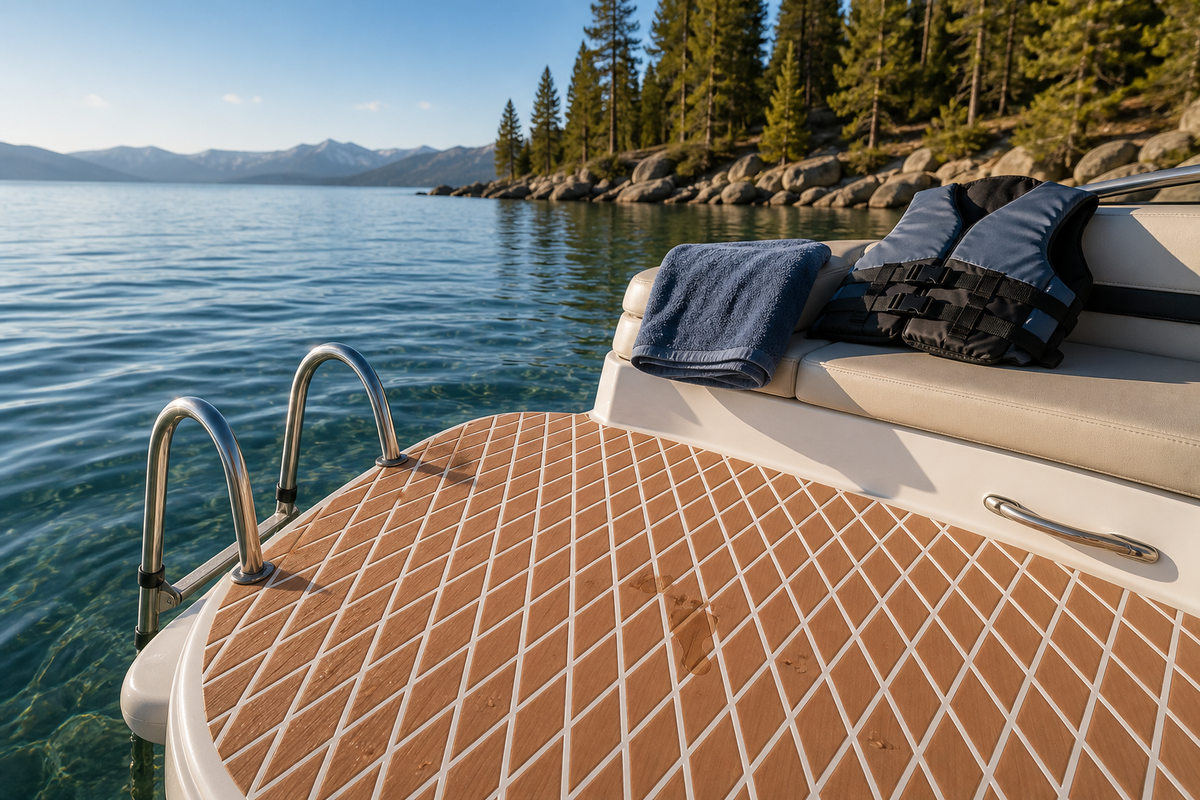

How to Plan Boat Flooring Around a Swim Platform

A swim platform and the cockpit beside it may look like one continuous deck, but they do different jobs. The platform meets the ladder, water, curved transom edges, and the first steps aboard. The cockpit handles seating, storage, passage to the helm, and access to equipment. A useful flooring layout connects those spaces visually without treating them as one oversized panel.

This guide explains how to plan sheet-material flooring across the stern of an open-bow recreational boat. It focuses on pattern direction, panel boundaries, templates, hardware access, water routes, and the transition into the cockpit. It does not assume one layout suits every boat. Confirm the substrate, preparation, cutting, placement, use, and care instructions for the exact flooring under consideration before ordering or installation.

Treat the swim platform and cockpit as connected zones

Begin with two labels on a deck sketch: water-entry zone and cockpit circulation zone. The swim platform is where a ladder may deploy, feet arrive from the water, and a person may pause before moving forward. The adjacent cockpit is where passengers turn, pass seating, reach storage, and continue toward the helm or bow.

Draw the normal route between those zones. Mark the first step onto the platform, the step or threshold into the cockpit, and the places where someone changes direction. This route is more useful than simply tracing the largest open surfaces. It shows where a decorative line can guide the eye and where a panel edge could become visually confusing.

For a broader pre-purchase view of bow, cockpit, and stern zones, Focean’s bowrider flooring buyer’s guide explains how to define the project before comparing surfaces.

Record the real stern geometry before choosing a pattern

Photograph the stern from directly behind the boat, from each quarter, and from inside the cockpit looking aft. Then make close photographs of the ladder mounts, platform perimeter, seat base, transom step, hatch edges, drains, cleats, handholds, fasteners, and any removable hardware. Include a reference object of known size without covering an edge you need to trace.

Do not assume the port and starboard curves match. Molded platforms can contain subtle changes around a ladder pocket, transom door, tow fitting, or seat support. Record each side independently. If a cushion, seat, or engine-access section moves, photograph it both closed and fully open.

Mark every feature on a simple stern map. Use one symbol for fixed hardware, another for moving parts, and a third for openings or drainage details. The map becomes the base for the visual layout and the full-size templates.

Choose one visual axis for the stern

Most patterned flooring has a direction even when it does not resemble planks. Grooves, diamonds, brushed grain, or repeating shapes can lead the eye fore-and-aft, across the beam, or diagonally. Choose one main visual axis that belongs to the boat: often the centerline, the cockpit passage, or the broadest straight transom reference.

Draw that axis on the stern map and add an arrow to every planned panel. The swim-platform pattern can continue into the cockpit, but continuity should be intentional. A level change or narrow threshold may justify a direction change if it makes the transition easier to read. Randomly rotating a piece merely to fit an offcut can make adjacent areas look disconnected.

Make the transition a deliberate boundary

The most important design decision is where the swim-platform layout ends and the cockpit layout begins. Look for a boundary already created by the boat: a vertical step, transom doorway, seat base, molded channel, engine-hatch edge, or clear change in level. An existing structural line usually produces a more understandable division than an arbitrary seam across open space.

If no obvious line exists, compare two or three full-size paper arrangements. One option may continue the main pattern through the threshold. Another may frame the platform as a separate stern panel. A third may use a narrow transition piece aligned with the step. Photograph each option from normal boarding height and from the cockpit.

Keep the boundary visible enough to inspect. Do not bridge a joint, moving section, drainage detail, or required clearance just to preserve visual continuity. The design should explain how the stern is built rather than hide how it functions.

Preserve ladder movement and hardware access

Deploy and stow the ladder while the boat is safely secured and follow the boat maker’s instructions. Trace the ladder’s full movement envelope, including hinges, telescoping sections, retaining hardware, and the space needed for hands. Mark these areas on the template before drawing decorative borders.

Keep fasteners, inspection points, handholds, and hardware edges available for normal use and inspection. A flooring panel should not cover a fitting simply because the pattern aligns neatly across it. If the ladder passes through or beside a cutout, test the cutout with a temporary full-size template through repeated deployment and stowage.

A RIB has different geometry, but the sequence-based planning method in Focean’s boarding-ladder flooring guide offers useful questions about first-step location, waiting space, hardware, and movement routes.

Build separate full-size templates for curved areas

Template the platform, threshold, cockpit floor, and moving lids as separate functional pieces. Use stable reference marks that can be found again on the boat. Each template should show the boat centerline, forward direction, neighboring panel number, pattern arrow, hardware cutouts, drainage features, and uncertain edges that still need confirmation.

For a curved platform perimeter, place reference points closely enough to describe the actual curve rather than connecting a few distant measurements with a guessed arc. Check the outer edge from above and from deck level. A small tracing error can become obvious when a patterned panel follows a bright molded border.

Do not calculate quantity until every template has a confirmed orientation. A piece may fit within the sheet dimensions only when rotated in a way that breaks the planned pattern. Arrange oriented templates on a paper sheet map and keep a realistic margin for cutting and verification.

Plan panel edges around water and inspection

Observe how water normally reaches and leaves the stern while the boat is in its appropriate secured position. Identify designed drains, channels, low points, and gaps. Flooring should not be used to redirect water, fill an unexplained low area, or conceal a drainage problem.

Place template edges where they can remain observable. Avoid creating a small isolated corner that will be difficult to position or inspect. At the cockpit transition, consider whether ordinary rinse water, wet gear, or dripping towels repeatedly cross the proposed boundary. The answer may influence panel shape, but it does not establish performance for any particular material.

Test pattern scale and color at full stern size

A small pattern image cannot show how repeated lines will interact with a wide platform, a narrow threshold, and a cockpit panel. Use a full-size material reference, printed mockup, or accurate overlay across a meaningful section of each zone. Compare it beside the upholstery, gelcoat, metal hardware, canvas, and hull accents.

View the mockup from the dock, ladder approach, rear seat, and cockpit passage. Check it in the light conditions in which the boat is commonly used. A high-contrast pattern may make the stern visually prominent, while a quieter pattern may connect more easily with the cockpit. Neither result is automatically correct.

Also check whether wet footprints, loose gear, and moving-part boundaries remain easy to notice against the design. Appearance is not evidence of cleanliness or secure footing; water, residue, wear, footwear, and maintenance all affect the deck. The purpose of this test is visual clarity.

Dry-fit the whole stern before cutting or placement

Place every full-size template at the same time. Align the pattern arrows, check the platform perimeter, and confirm the transition line from several viewpoints. Then cycle each moving component: deploy the ladder, open the hatch or seat, operate the transom passage, and reach every fastener or service point that must remain available.

Walk the boarding route only when the boat is safely supported and the temporary materials cannot move unexpectedly. Carry an empty gear bag or folded towel through the normal path. Check whether the planned seam falls beneath a repeated turn or whether the pattern makes a step edge difficult to distinguish.

Focean’s wake-boat cockpit planning guide provides a related stern-to-helm framework for movement, storage, service access, and visual flow.

Create a panel map another person can audit

A useful final plan should be understandable without verbal explanation. Include:

1. a top-down sketch with bow, stern, port, and starboard labeled;
2. a number for each platform, threshold, cockpit, and moving-lid panel;
3. matching numbers and direction arrows on every full-size template;
4. the main visual axis and every intentional direction change;
5. ladder movement, hardware, drains, hatches, and required clearances;
6. photographs of the complete dry fit from the dock and cockpit; and
7. a written list of exact-product and substrate questions still unresolved.

Save the map, template photographs, and product records after the project. They can help identify the intended boundaries if a panel, fitting, or access point needs attention later.

Questions to resolve for the exact flooring

• What is the exact platform and cockpit substrate, including any coating or previous adhesive?
• Do the selected item’s instructions permit use in both planned zones?
• What preparation, environmental, cutting, placement, edge, and care directions apply?
• Which gaps, drains, labels, fasteners, and service points must remain uncovered?
• How should separate panels meet at the level change or transom threshold?
• Can the supplier review full-size templates and clear photographs before the final cut plan?

FAQ

Should the swim platform and cockpit use one continuous panel?

Not automatically. Their geometry, level changes, moving parts, drainage, sheet dimensions, and access needs may favor separate panels. Use the boat’s structural boundaries and full-size templates to decide.

Should the pattern direction change at the platform?

It can change when the transition is deliberate and easy to understand. Compare a continuous direction with a framed platform or threshold piece at full scale, then choose the layout that keeps the stern coherent and its boundaries visible.

Can flooring cover the ladder mounts or transom hardware?

Keep ladder hardware, fasteners, handholds, drains, labels, and service points available as required by the boat and flooring instructions. Test the complete ladder movement with the template before cutting.

Practical takeaway

Plan the stern as a connection between two different zones. Map the boarding route, choose a visual axis, use the boat’s structure for the platform-to-cockpit boundary, preserve ladder and hardware access, build oriented full-size templates, and dry-fit the complete layout. A successful design makes the transition look intentional while keeping every functional edge understandable.
